Description
Features
- HS-CAN physical bus interface with High Speed UART protocol up to 2MBit/s for dynamic LED control
- Supply voltage from 5V up to 40V 16 PWM generators with 10bit resolution
- 16 programmable LED drivers with output current of 10mA to 100mA and configurable slew rate
- LED driver current selection step size of 100µA
- 2 optionally prioritized PWMIN interface pins
- PWMIN interface and bus timeout detection for redundant control (limp home)
- Direct PWM input to synchronize LED PWM output
- 10bit ADC for LED open, short and system diagnosis
- Single lamp mode support
- Advanced device power management by channel bundling
- Configurable supply and temperature dependent LED current derating
- LED channel individual bin class brightness correction
- Optional external LED bin class resistor evaluation
- Optional sleep mode for low current consumption
- RAM debug mode to support comfortable design-in
- AEC-Q100 & AEC-Q006 Automotive Qualification
- Developed according ISO26262 supporting applications up to ASIL B

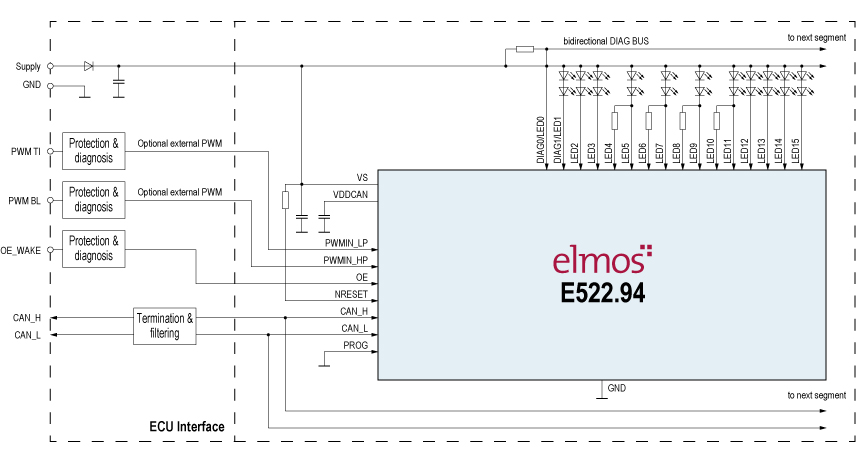

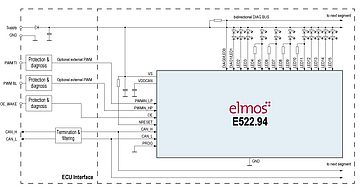

Application Diagram
Applications
- Automotive interior and exterior light systems
- General LED Applications
- High speed LED light animations
Ordering Information
Samples
| Part No. | TempAmb Range | Package | Order No. |
|---|---|---|---|
| E522.94 | -40°C to +125°C | QFN32L6 - EP, 0.6mm - SLP | E52294A77BXX2 |
