This bipolar stepper-motor actuator provides a sensorless end position detection which also is able to detect a blocked motor due to mechanical problems. This function, called “stall detection” is performing within a wide... read more


  • Voltage range 7V to 18V (5.5V to 42V peak)
  • LIN 2.x (1.3, SAE-J2602 comp.) or PWM bidirectional
  • Motor driver for one bipolar stepper motor
  • Microstepping chopper current up to 2 x 190mA
  • Slave node position detection / auto addressing
  • 8bit CPU, 8k FLASH, 64Byte E2PROM
  • 3 GPIO pins and sensor supply
  • TJunc peak = +150°C (Contact supplier for higher temperature)


Free Download

File Description Type
Info Sheet PDF 209 kB

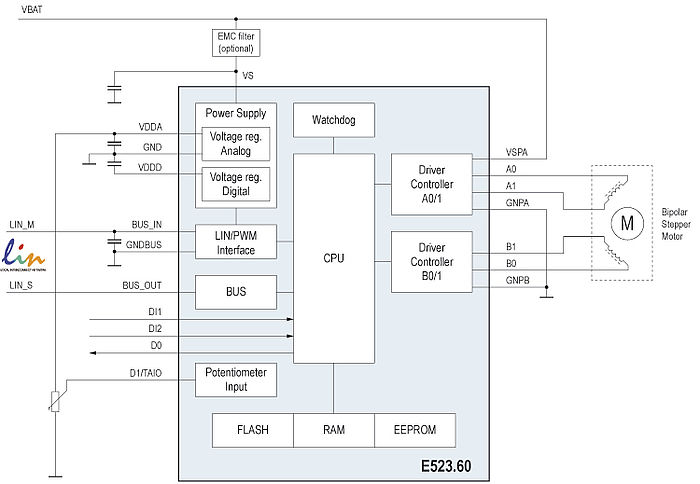

Application Diagram


  • Actuator Universal
  • HVAC flaps
  • Small grill shutter
  • Water valve
  • Liquid valve
  • Cruise Control
  • Mirror Control
  • Multi purpose LIN slave

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Part No. Feature Package Order No.
E523.60 8k FLASH QFN32L6 E52360A77B
E523.61 8k ROM (on request) QFN20L5 -
