DC Motor LS FET Driver (LIN/PWM Interface) | E523.03, E523.04, E523.13, E523.14 (*SBC)

Description

This IC is developed for automotive applications to control one NMOS – FET for driving DC motors, or other loads. The IC provides a power supply (3.3V or 5V), reset and watchdog for an external μC and is designed for junction... read more

Features

  • Voltage range 7 to 28V (5V to 42V peak)
  • LIN 2.x (1.3, SAE-J2602 comp.) or PWM bidirectional
  • Deep sleep mode current l< 30μA
  • Voltage Regulator for ext.μC: 3.3V/5V, IMAX=30mA
  • Window-watchdog, dynamical change via SPI
  • Amplifier for low side motor current measurement
  • Over-current switch-off, dynamical change via SPI
  • Monitoring battery voltage, gate supply, temperature

Documentation

Free Download

File Description Type
Info Sheet PDF 150 kB

On Request

File Description
E523.03/04/13/14 | Data Sheet

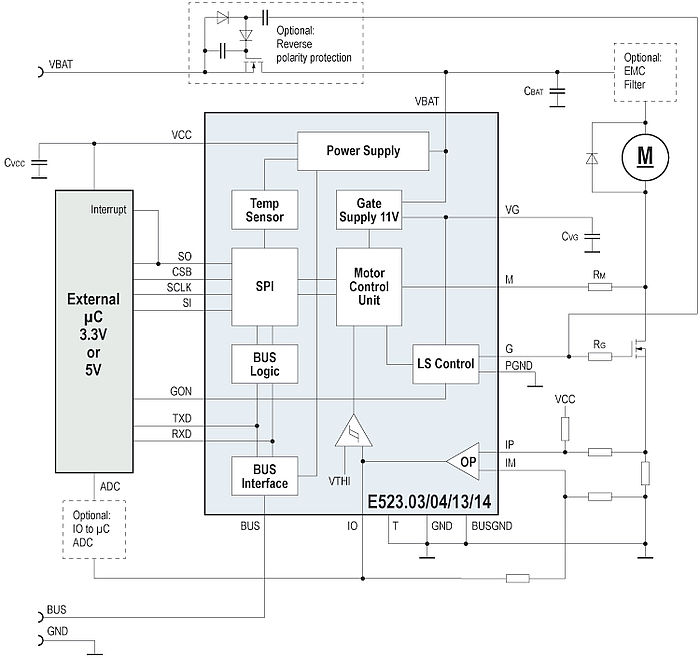

Application Diagram

Applications

  • DC Wiper
  • DC HVAC fan, engine cooling fan
  • DC fuel pump, hydraulic pump, oil pump
  • Multiple DC motor control
  • Without external FETs: direct driving of small loads

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Samples

Part No. Characteristics Package Order No.
E523.03 LIN 2.x or PWM-interface
with 5V regulator		 QFN20L4 E52303A52C
E523.03 LIN 2.x or PWM-interface QFN32L5 w. hight voltage spacer E52303A61C
E523.04 LIN 2.x or PWM-interface
with 3.3V regulator		 QFN20L4 E52304A52C
E523.04 LIN 2.x or PWM-interface
with 3.3V regulator		 QFN32L5 w. hight voltage spacer E52304A61C
E523.13 PWM - interface
with 5V regulator		 QFN20L4 E52313A52C
E523.14 PWM - interface
with 3.3V regulator		 QFN20L4 E52314A52C


Boards

Part No. Demo also relative for Function Board type Order No.
E523.03 E523.04, E523.13, E523.14 DC Motor LS FET Driver (LIN / PWM Interface) Demo- / Evaluation Board K52303-0001
