Description

The E931.86A is an ultra-low power motion detector controller integrated circuit. The device is ideally suited for battery operated wireless motion sensors that make use of an MCU for handling communication.
The MCU does not need to be... read more

Features

  • Programmable detection criteria and operating modes
  • Digital signal processing
  • On chip supply regulator for conventional PIR detectors
  • Ultra Low power consumption
  • Differential PIR sensor input
  • Supply voltage measurement
  • Temperature measurement
  • Instantaneous settling after power up

Documentation

On Request

File Description
E931.86 | Data Sheet

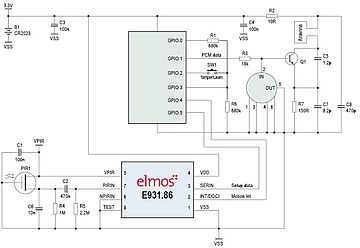

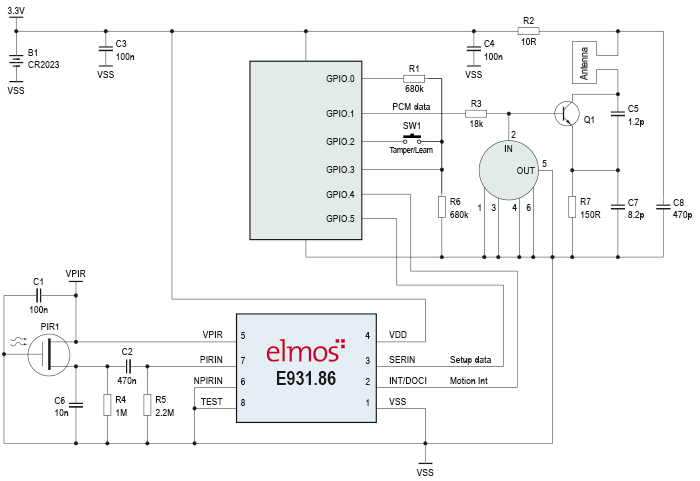

Application Diagram

Applications

  • Wireless intruder detectors
  • Battery powered door chimes
  • Emergency lighting
  • Motion and presence detection
  • Smart Digital PIR Detectors

Ordering Information

Samples

Part No.Temp. RangePackageOrder No.
E931.86-40°C to 85°CSOIC8E93186A53D
E931.86-40°C to 85°CDieE93186A22W
