Description
Features
- Supply Voltage Range 4.5V to 36V (max. 40V)
- Three Linear Current Drivers (up 200mA each)
- Parallel Output Operation for up to 600mA
- Thermal Management Option per Channel
- Integrated 3-Phase PWM Generator for e.g. Tail/Stop Lighting
- Diagnosis supported for
- LED Drivers (incl. configurable Thresholds)
- IR Current Configuration
- Junction Temperature including Derating - Configurable Fault-Handling Modes
- "Failure Feedback Mode" (FFM)
- "Single Lamp Behaviour" (SLM) - Diagnostic RUN Bus to link ICs into Clusters
e.g. built using E522.60/E522.8x/E522.9x Products - External Reference Voltage / Derating Supported
- Low-Power Standby / Sleep Mode
- Narrow SO16 Package with Exposed Pad
- AEC-Q100 Automotive Qualification

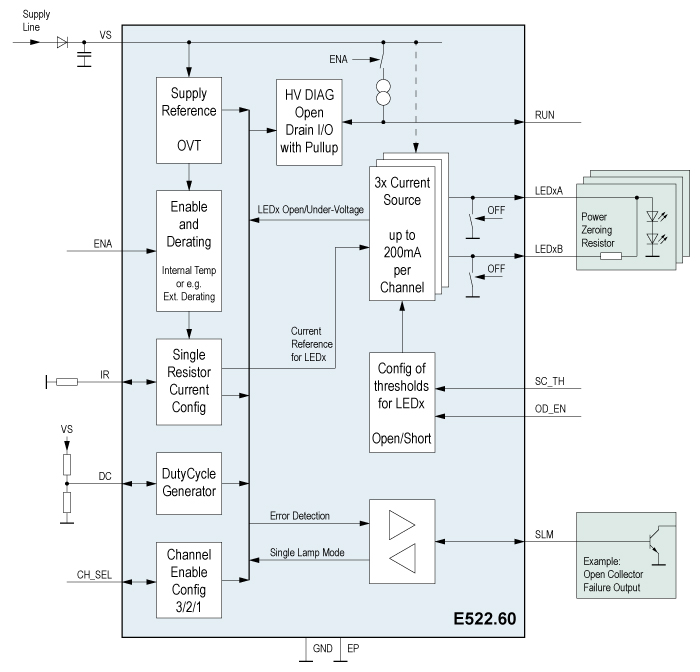

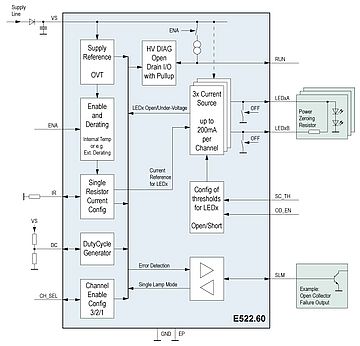

Application Diagram
Applications
- Automotive LED Lighting e.g. Rear Lighting,Turn Indicators, Daytime-Running Light
- Medium Current Interior Lighting
- Industrial LED Applications
Ordering Information
Samples
| Part No. | Temp Range | Package | Order No. |
|---|---|---|---|
| E522.60 | -40°C to +125°C | SOIC-16n EP | E52260A96E |
