Description
Features
- Programmable detection criteria and operating modes
- Digital signal processing
- On chipsupply regulatorfor conventional PIR detectors
- Ultra Low power consumption
- Differential PIR sensor input
- Excellent power supply rejection
- Insensitive to RF interference
- Instantaneous settling after power up

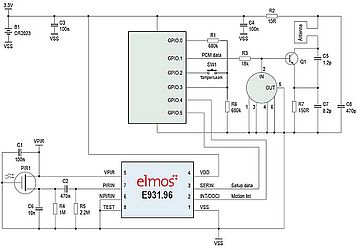

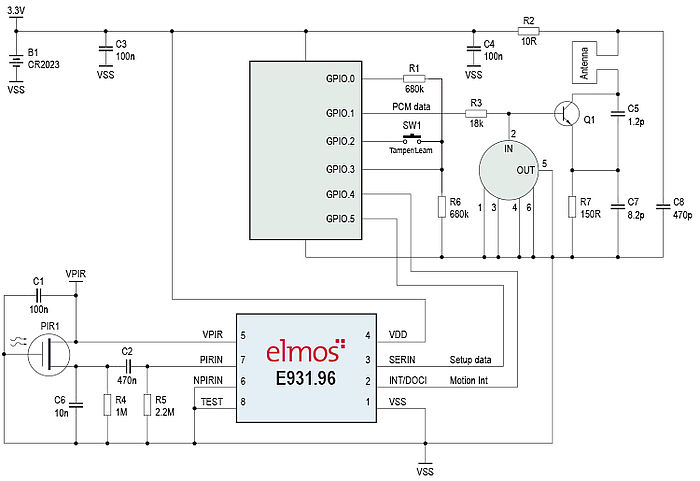

Application Diagram
Applications
- Wireless intruder detectors
- Battery powered door chimes
- Emergency lighting
- Motion and presence detection
Ordering Information
Samples
| Part No. | Temp. Range | Package | Order No. |
|---|---|---|---|
| E931.96 | -40°C to +85°C | SOIC8 | E93196B53D |
| E931.96 | -40°C to +85°C | Entegris Box | E93196B22W |
| E931.96 | -40°C to +85°C | Waferbox | E93196B22Z |
Boards
| Part No. | Description | Board type | Order No. |
|---|---|---|---|
| E931.96 | Motion Sensing, Ultra Low Power PIR controller, Evaluation Module | Demoboard | K93196-0001 |
