Description
Learn more about LED Drivers for Ambient Lighting
Features
- Input voltage range 5V to 28V
- Integrated 16 bit microcontroller
- 32kByte OTP
- 128Byte customer usable non-volatile memory
- 1.25kByte RAM 16kByte SysROM containing standard
LIN routines and boot loader - 4 PWM generators with 48MHz and 16bit resolution
- 2 Timers with 16bit resolution
- 3 LED drivers with currents up to 40mA and fast slopes
Documentation

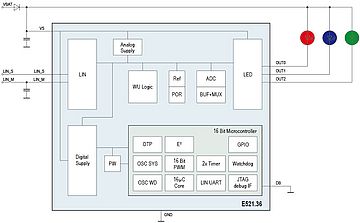

Application Diagram
Applications
- Interior light modules
- Ambient lighting
Ordering Information
Samples
| Part No. | Temp. Range | Package | Order No. |
|---|---|---|---|
| E521.36 | -40°C to +125°C | SOIC8-EP | E52136B80D |
Boards
| Part No. | Description | Board type | Order No. |
|---|---|---|---|
| E521.36 | RGB LIN Controller with Current Source (CPU Board with removable socket) | Evaluation Board | K52136-0001 |
| E521.36 | GB LIN Controller with Current Source (CPU Board with removable socket ENPLAS) | CPU Board | K52136-0002 |
| E521.36 | RGB LIN Controller with Current Source (CPU Board without removable socket) | CPU Board | K52136-0003 |
| E521.36 | RGB LIN Controller with Current Source | Mini-Demo | K52136-0004 |
| E521.36 | RGB LIN Controller with Current Source (CPU Board RAM Device) | CPU Board | K52136-0005 |
| E521.36 | RGB LIN Controller with Current Source | Mini-Demo ENPLAS | K52136-0006 |
| E521.36 | RGB LIN Controller with Current Source | Mini-Demo RAM | K52136-0007 |
