The E522.95 is a multi-channel PWM driver connected to the CAN-FD in-vehicle network. The direct CAN-FD bus connection enables fast light animation sequences controlled by a body controller or a light control unit. The device... read more


  • CAN-FD bus interface compatible to ISO 11898 up to 2MBit/s data rate
  • Supply voltage range from 5V up to 40V
  • External voltage regulator control
  • Advanced channel power management
  • Individual PWM generators with 10bit resolution
  • Individually programmable LED drivers up to 100mA
  • LED driver current selection step size of 400µA
  • PWMIN interface pin for fail-safe behavior
  • 10bit ADC for LED open, short and system diagnosis
  • Channel bundling option
  • Configurable supply and temperature dependent LED derating
  • LED channel individual bin class brightness correction
  • Optional external LED bin class resistor evaluation
  • Configurable single lamp behavior
  • EEPROM for configuration data
  • Development according to ISO26262
  • Supports applications with safety requirements up to ASIL B
  • Full automotive qualification according to AEC-Q100


Free Download

File Description Type
Info Sheet PDF 144 kB
Product Flyer Linear LED Controller PDF 2.13 MB

On Request

File Description
E522.95 | Data Sheet

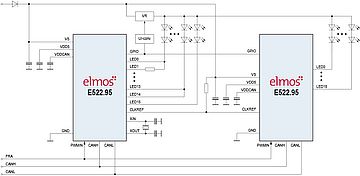

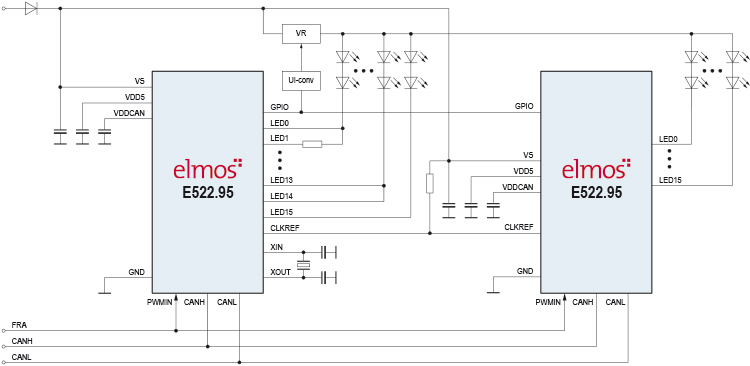

Application Diagram


  • Automotive interior and exterior light systems
  • General LED Applications
  • High speed LED light animations


Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Part No. TempAmb Range Package Order No.
E522.95 -40°C to +125°C QFN40L6, 0.6mm optional - SLP E52295A44B605
