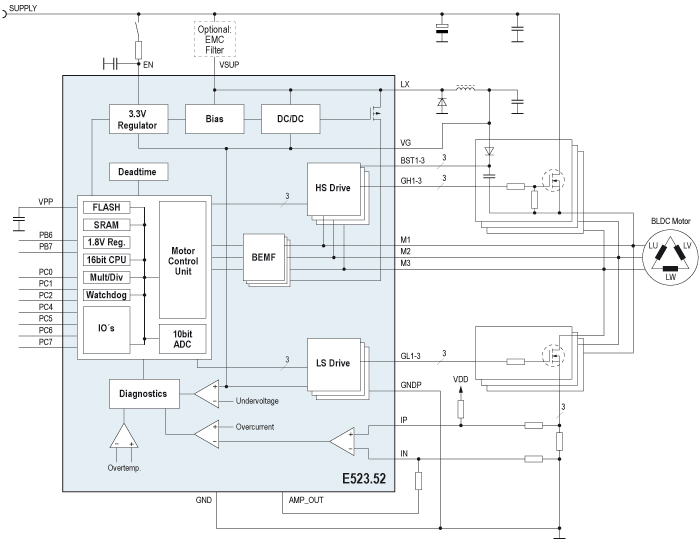

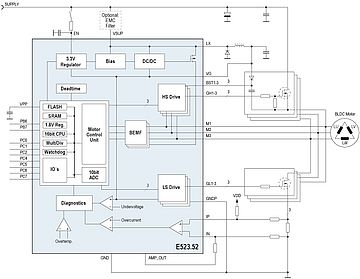

The E523.52 is a programmable, high-voltage brushless motor controller for 24V..48V automotive applications, industrial applications and commercial vehicles. It integrates 3 half-bridge drivers, a 11V step down converter, two linear regulators, and a 16bit RISC microcontroller with 32kB Flash. The DC-DC converter efficiently provides 11V for the six gate drivers, the internal linear regulators, and other loads such as external Hall sensors.
Up to 9 configurable IO pins facilitate interfacing with the application and the outside world. All IOs can be sampled by a 12bit, 1MS/s ADC with direct memory access.
Three self advancing PWM generators with integrated dead time can implement various wave-forms. Fully integrated back-EMF channels allow sensorless commutation. Automatic ADC triggering allows programming of complex commutation algorithms. The memory can be divided into pro-tected and field programmable areas.
Internal temperature monitoring and a thermally efficient 36 Pin QFN package enable the driver section to operate close to its maximum junction temperature of +150°C.
- Voltage range 12V to 72V (7V to 76V peak)
- CPU 16 bit, 24 - 48MHz for application tasks
- 32kByte FLASH, 16kByte MaskROM, 4kByte SRAM
- 10 bit 1 Msample SAR ADC
- 4x 16 bit PWM generation (edge/center aligned)
- Adjustable window watchdog (independent clock)
- 6x 200mA gate drivers with programmable dead time and protection features
- Fast OpAmp for foot current measurement
- Powertrain Actuator
- Engine cooling fan
- Throttle Valve
- Oil / Hydraulic Pump
- Fuel Pump
- Water Pump
- Urea Pump
- Belt Pre-Tightner
- Electric parking break (EPB)
- Convertable Top
- Wiper Control
- HVAC Fan
- HVAC Flaps
Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.
|Part No.||Temp. Range||Package||Order No.|
|E523.52||-40°C to +150°C||QFN36L7||E52352A279B|
|Part No.||Description||Board type||Order No.|
|E523.52||72V Brushless Motor Gate Driver with 16bit||Demo- / Evaluation Board||K52352-0001|
|*Plug & Play||Chip with defined functionality | no controller programming necessary|
|*SoC||System-on-a-Chip | with integrated microcontroller|
|*SBC||System-Basic-Chip | with Voltage Regulator Reset, Watchdog, physical Interface|
|*Driver IC||Driver Chip without SBC or SoC features|
