Description

The E524.71 is an absolute pressure sensor for barometric air pressure measurement. It includes a piezoresistive pressure bridge and a signal processing IC, which performs amplification and thermal compensation of the... read more

Features

  • Fully integrated pressure sensor
  • Full thermal compensation to accuracy ±1.0 kPa
  • Two 16-bit ADCs for acquisition of pressure and temperature
    inputs; pressure acquired at 20kS/s
  • Diagnosis of sensor, sensor supply and wiring, and NVM check-sum supervision at power-on

Documentation

Document Description Type
Product Flyer Pressure Sensors PDF 1,9 MB

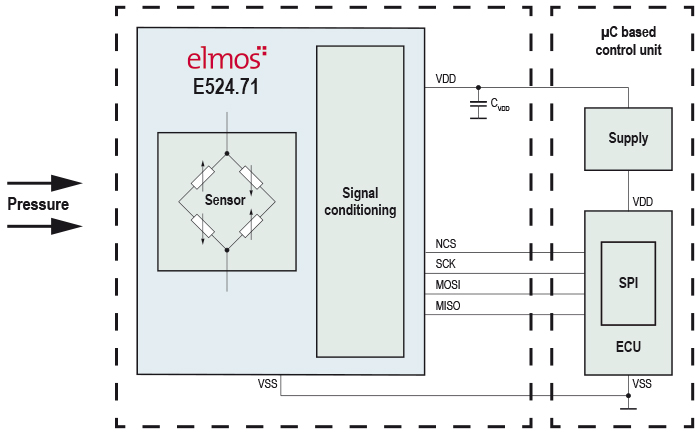

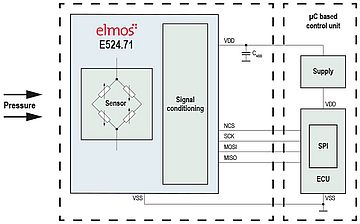

Application Diagram

Applications

  • Automotive applications
  • Industrial applications
  • Medical applications

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Samples

Part No. Pressure Range Package Order No.
E524.71 40 - 115 kPa SOIC8 E52471A53I232


Boards

Part No. Description Board type Order No.
E524.71 Application Circuit Board Demoboard K52471-0001
