Description
Features
- KNX/EIB transceiver, certified according to KNX TP1-256
- Analog mode supported
- Configurable bus current (maximum current and slew rate)
- Voltage regulators
- 20V: current capability up to 20mA
- 3.3V or 5V DC/DC converter: current capability up to 70mA - UART host interface (data rate up to 115.2 Kbit/s)
- SPI for configuration (optional)

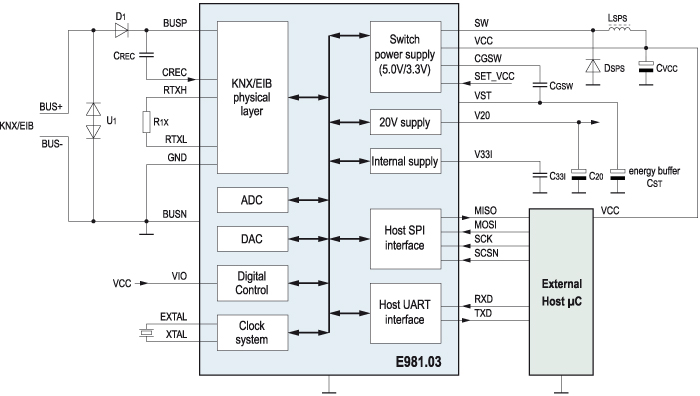

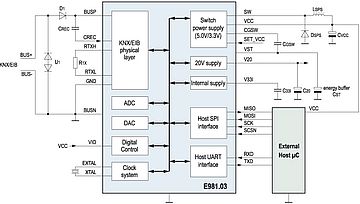

Application Diagram
Applications
- Sensors, actuators, routers, gateways, Bus-powered or externally supplied
- Security applications
Ordering Information
Samples
| Part No. | Temp. Range | Package | Order No. |
|---|---|---|---|
| E981.03 | -25°C to +85°C | QFN32L7 | E98103A38B |
Boards
| Part No. | Description | Board type | Order No. |
|---|---|---|---|
| E981.03 | KNX/EIB Transceiver | KNX TP Demoboard | K98103-0001 |
| E981.03 | KNX/EIB Transceiver | KNX TP 815 Demoboard (=Evaluation Board) | K98103-0002 |
