Description

The Elmos System-Basis-Chip (SBC) family E523.02/12 controls controls four relays either low-side or high-side driven or three bistable relays (activation in sequential order). The relay holding current can be programmed by the external... read more

Features

  • Voltage range 7V to 28V (5V to 42V peak)
  • Controls 4 relays, low- or high-side driven or 3 bistable relays
  • Relay pull-in and holding current can be controlled via PWM input
  • Power supply 3.3V or 5VC for external controller
  • LIN 2.x interface (1.3), SAE-J2602 or PWM bidirectional
  • Several diagnostic and protection functions
  • Adjustable window watchdog
  • TJunc peak = +170°C

Documentation

Free Download

File Description Type
Info Sheet PDF 165 kB

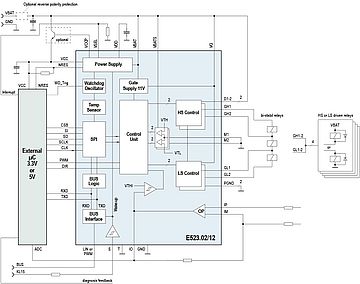

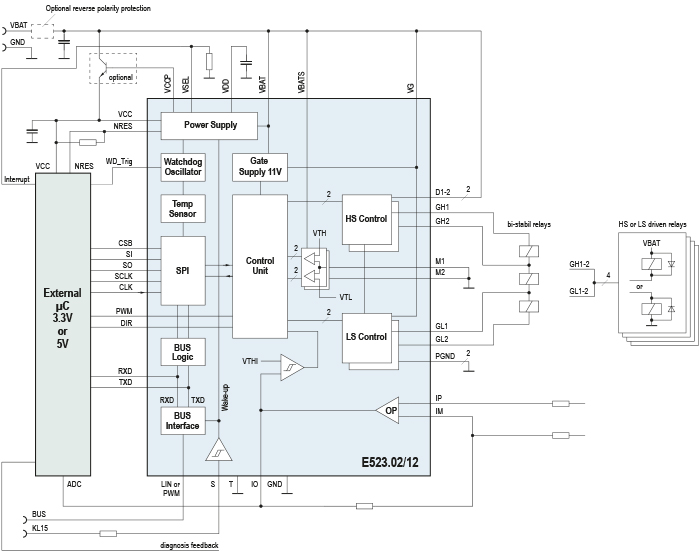

Application Diagram

Applications

  • LIN 2.x or LIN 1.3 relay nodes

Ordering Information

Samples

Part No.FeaturesPackageOrder No.
E523.02LIN 2.x or PWM for 2 half bridgesQFN44L7E52302C39B
E523.02LIN 2.x or PWM for 2 half bridgesQSOP44E52302C35E
E523.12PWM for 2 half bridgesQFN44L7E52312C39B
E523.12PWM for 2 half bridgesQSOP44E52312C35E
