Description

The E909.23 is a dedicated HALIOS® signal conditioner for gesture control applications and optimized for the use for automotive touch displays in low power applications.The function principle is based on comparing the light... read more

Features

  • Patented HALIOS® control loop
  • 4 LED sending channels, 100mA per channel
  • 1 receiving channels
  • 1 compensator channel
  • I2C interface
  • Ambient light immunity up to 200.000 lux
  • Temperature range -40°C to +105°C
  • Automotive qualified (AEC-Q100)

Documentation

Free Download

File Description Type
Info Sheet PDF 109 kB
Product Flyer Automotive Gesture Control PDF 5.82 MB

On Request

File Description
E909.23 | Data Sheet

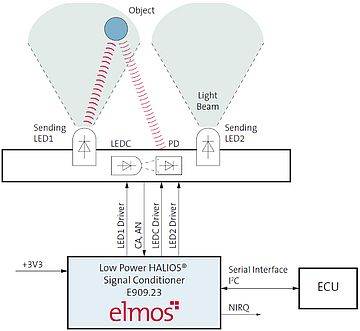

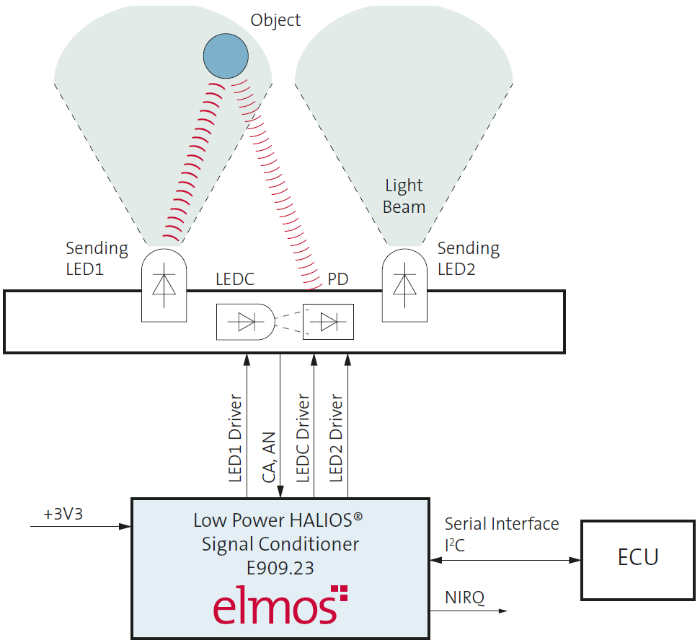

Application Diagram

Applications

  • Wide Sensor Bars
  • Door Handles
  • Control Panels
  • Focal point of Interest

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Samples

Part No. Temp. Range Package Order No.
E909.23 -40°C to +105°C QFN20L4 E90923A52C
