Description
Learn more about Sensorfusion (ToF/HALIOS®)
Features
- Patented HALIOS® control loop
- 4 LED sending channels, 100mA per channel
- 2 receiving channels, 1 compensator channel
- Scalable HALIOS® frequency up to 1MHz
- SSI serial sensor interface
- 16 bit Harvard Architecture H430 CPU
- 32kByte Flash, 4kByte SRAM and 8kByte SysROM
- Temperature range -40°C to +105°C
- Automotive qualified (AEC-Q100)
Documentation
Free Download
| File | Description | Type |
| Info Sheet | PDF 137 kB | |
| Product Flyer | Automotive Gesture Control | PDF 5.82 MB |

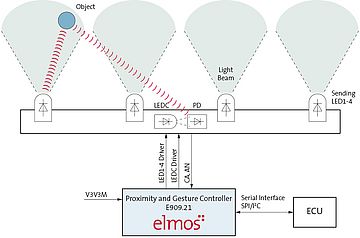

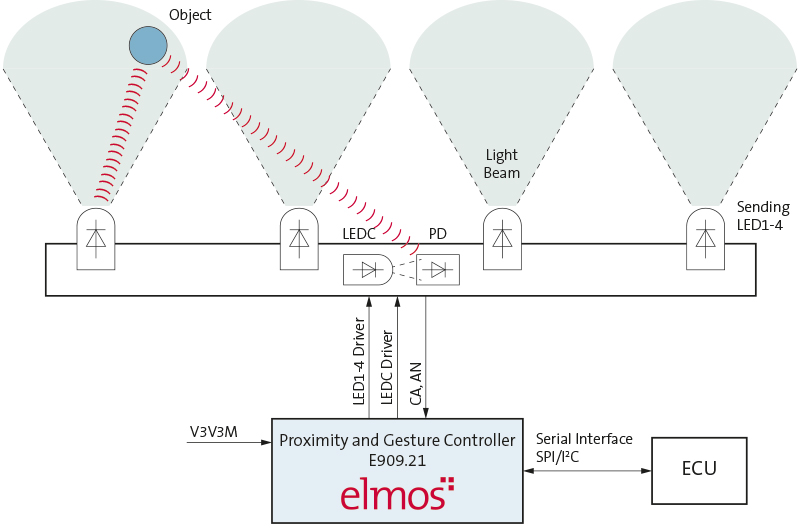

Application Diagram
Applications
- Proximity a. gesture recognition for automotive touch displays
- Driver and passenger detection
- Wake-up function for displays
- Touchless control in harsh environments (e.g. explosion protected areas)
Ordering Information
Samples
| Part No. | Temp. Range | Package | Order No. |
|---|---|---|---|
| E909.21 | -40°C to +85°C | QFN32L5 | E90921A61C |
Boards
| Part No. | Description | Board type | Order No. |
|---|---|---|---|
| E909.21 | 10 inch Bottom G2 Evaluation Kit | Evaluation Kit | M141 or M142 |
| E909.21/22 | 10inch Bottom G2 Reference Design Package | Reference Design | M1003D |
| E909.21/22 | 13 inch Bottom G2 Evaluation Kit | Evaluation Kit | M143 |
| E909.21/22 | 15 inch Bottom G2 Evaluation Kit | Evaluation Kit | M144 |
| E909.21 | Mini ComBoard-03 | Accessory | M1006 |
| E909.21 | MAZ JTAG Adapter-00 | Accessory | M1007 |
