The Elmos System-Basis-Chip E523.01 controls controls six relays either low-side or high-side driven or five bistable relays (activation in sequential order). The relay holding current can be programmed by the external... read more


  • Voltage range 7V to 28V (5V to 42V peak)
  • Controls 6 relays, low- or high-side driven or 5 bistable relays
  • Relay pull-in and holding current can be controlled via PWM input
  • Power supply 3.3V or 5VC for external controller
  • LIN 2.x interface (1.3), SAE-J2602 or PWM bidirectional
  • Several diagnostic and protection functions
  • Adjustable window watchdog
  • TJunc peak = +170°C


Free Download

File Description Type
Info Sheet PDF 167 kB

On Request

File Description
E523.01/11 | Data Sheet

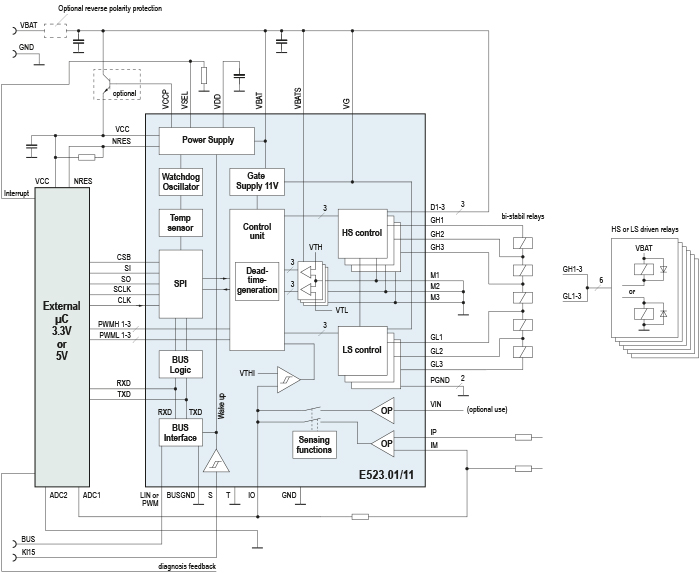

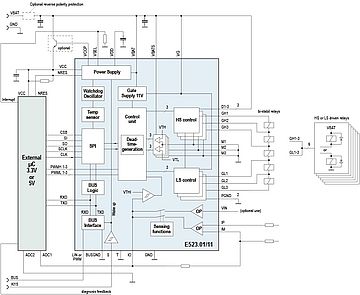

Application Diagram


  • LIN 2.x or LIN 1.3 relay nodes

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Part No. Features Package Order No.
E523.01 LIN2.x or PWM interface QFN44L7 E52301C39B401
E523.01 LIN2.x or PWM interface QFN48L7 E52301C78B401
E523.01 LIN2.x or PWM interface QSOP44 E52301C35E401
