LIN Controller with Position Detection | E521.31 (*SoC)

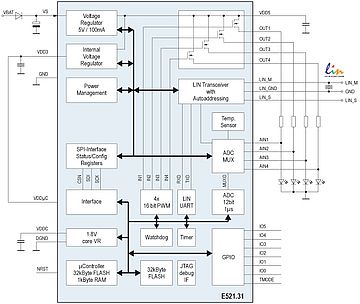

The device E521.31 is a LIN RGB controller providing a 16bit microcontroller with two independed 32k Byte Flash memory blocks, a 5V voltage regulator with up to 100mA and a LIN transceiver with integrated auto addressing circuit.
The integrated high side driver controlled by a 16 bit PWM can be used to drive external loads with current up to 50mA each.
For temperature compensation the device provides an integrated temperature sensor.
- Transceiver compliant with LIN 2.1, LIN 2.2 and SAE-J2602
- Linear voltage regulator with 5V, 100mA
- State of the art 16bit μC
- Integrated 32kbyte Flash (Flexible EEPROM emulation by SW)
- 4x PWM driven High Side drivers with 5V and up to 50mA each
- μC window watchdog
- ADC 12bit accuracy
- Interior light modules
Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.
|Part No.||Temp. Range||Package||Order No.|
|E521.31||-40°C to +125°C||QFN32L5||E52131B61C|
|Part No.||Description||Board type||Order No.|
|E521.31||LIN RGB Controller with Position Detection||Evaluation Board||K52131-0001|
|E521.31||LIN RGB Controller with Position Detection (CPU Board for K52131-0001)||CPU Board||K52131-0002|
|E521.31||LIN RGB Controller with Position Detection (Full Application in Small Size)||Mini-Demo||K52131-0003|
|E521.31||LIN RGB Controller with Position Detection (Auto-Addressing Test Board)||Evaluation Board||K52131-0004|
|E521.31||MiniMux (Mini-Demo Multiplexer)||Mini-Demo||K52131-0005|
